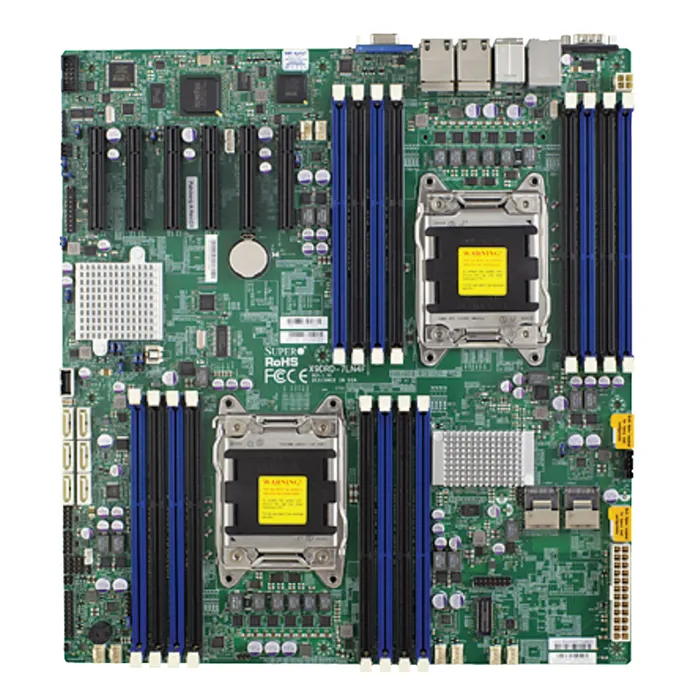

X9DRD-7LN4F-JBOD-O - Supermicro Dual LGA2011/ Intel C602J/ DDR3/ SATA3/SAS2/ V/4GbE/ EATX Server Motherboard

1. Form Factor: EATX (Extended ATX)
2. CPU Socket Type: Dual LGA2011
3. Chipset Type: Intel C602J
4. Memory Type: DDR3 ECC Registered
5. Number of Memory Slots: 16x 240pin
6. Maximum Memory Supported: 1TB
7. Expansion Slots: 7x PCIe 3.0 x16 slots
8. SATA 3: 8x SATA3 (6Gbps) ports
9. SAS 2: 8x SAS2 (6Gbps) ports
10. LAN: Quad LAN with Intel Ethernet Controller i350-AM4
11. USB Ports: 4x USB 3.0 ports, 8x USB 2.0 ports
12. Graphics: ASPEED AST2400 BMC Graphics

Notes:
1. This motherboard supports dual Intel Xeon E5-2600 processors.
2. The quad LAN ports provide high-speed connectivity for network-intensive applications.
3. The ASPEED AST2400 BMC Graphics provides remote management capabilities.
