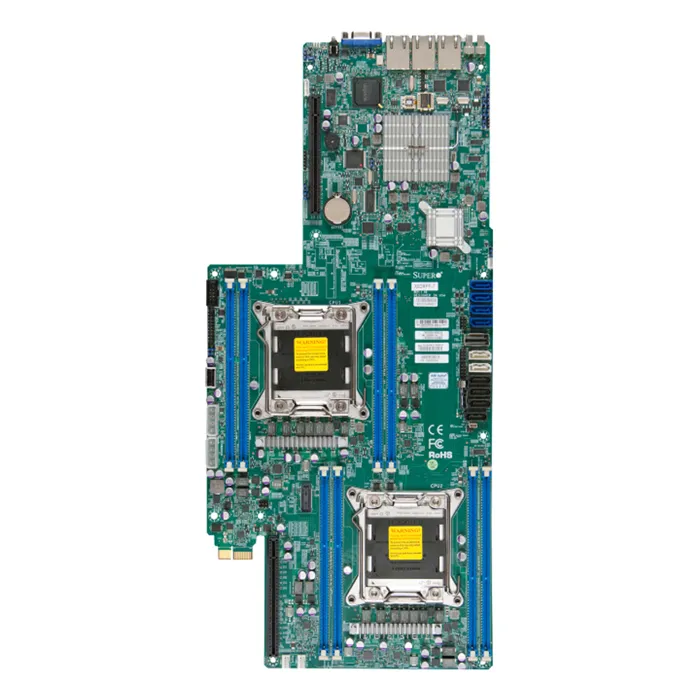

Supermicro X9DRFF-7-P | Dual LGA2011/ Intel C602J/ DDR3/ SATA3/SAS2/ V/2GbE/ Proprietary Server Motherboard

1. Form Factor: Proprietary
2. CPU Socket Type: Dual LGA2011
3. Chipset: Intel C602J
4. Memory Type: DDR3 ECC Registered/Unbuffered
5. Number of Memory Slots: 16x 240-pin DIMM Slots
6. Maximum Memory Supported: 1TB
7. Expansion Slots: 2x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, 1x PCI-E 2.0 x4 (in x8)
8. Storage: 10x SATA3 (6Gbps), 8x SAS2 (6Gbps)
9. RAID Support: RAID 0, 1, 5, 10
10. Networking: 2x Gigabit Ethernet ports
11. USB Ports: 4x USB 3.0, 4x USB 2.0
12. Graphics: Aspeed AST2400 BMC Graphics

Notes:
1. This motherboard is designed for high-performance servers and workstations.
2. The large number of memory slots and storage options make it suitable for data-intensive applications.
3. The onboard graphics and dual Ethernet ports provide additional flexibility for remote management and networking.
