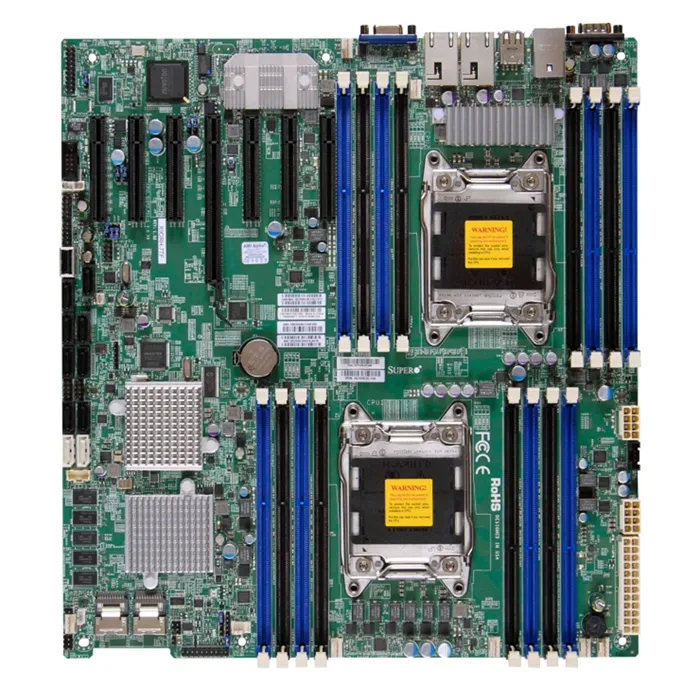

X9DRH-ITF-O - Supermicro Dual LGA2011/ Intel C602/ DDR3/ SATA3/ V/2GbE/ EATX Server Motherboard

1. Form Factor: Extended ATX
2. CPU Socket Type: Dual LGA 2011
3. Chipset: Intel C602
4. Memory Type: DDR3 ECC Registered/Unbuffered DIMM
5. Memory Slots: 16x 240pin
6. Maximum Memory Supported: 1TB
7. Expansion Slots: 3x PCI-E 3.0 x16, 3x PCI-E 3.0 x8
8. SATA 3: 8x SATA3 6Gb/s
9. LAN: 2x RJ45 Gigabit Ethernet LAN ports
10. USB Ports: 4x USB 3.0 (2 rear, 2 via header), 8x USB 2.0 (2 rear, 6 via header)
11. Audio: Realtek ALC889 7.1-Channel High Definition Audio CODEC
12. Power Connectors: 1x 24-pin ATX power connector, 2x 8-pin CPU power connectors

Helpful notes:
1. This motherboard supports Intel Xeon E5-2600/1600 v2 series processors.
2. The motherboard features IPMI 2.0 with virtual media over LAN and KVM-over-LAN support.
3. The motherboard supports NVIDIA 4-Way SLI and AMD 4-Way CrossFireX technology for high-performance graphics.
