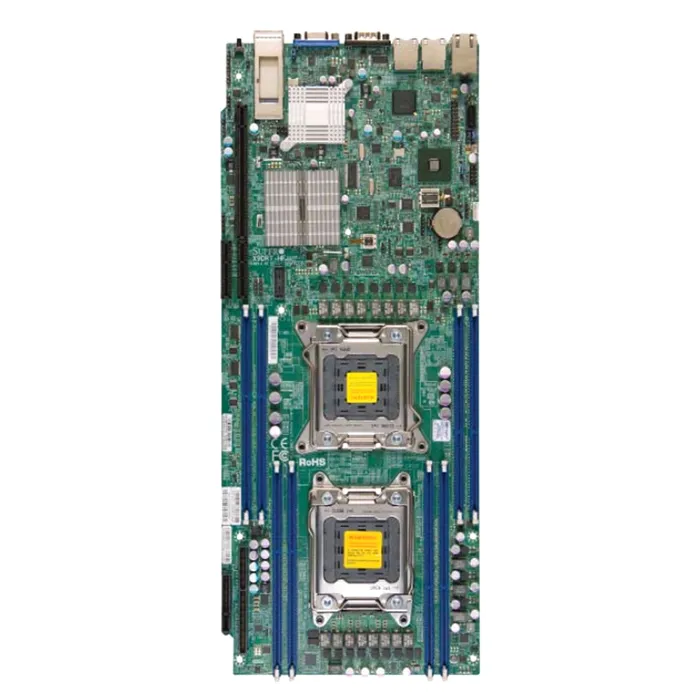

X9DRT-HF-B - Supermicro Dual LGA2011/ Intel C602/ DDR3/ SATA3/ V/2GbE/ Proprietary Server Motherboard

1. Form Factor: E-ATX
2. CPU Socket: Dual LGA2011
3. Chipset: Intel C602
4. Memory Type: DDR3 ECC Registered
5. Memory Speed: Up to 1866MHz
6. Memory Slots: 16 DIMM slots
7. Max Memory Capacity: 512GB
8. Expansion Slots: 7x PCIe 3.0 x16 slots
9. SATA Ports: 10x SATA3 (6Gbps)
10. LAN: 2x 1GbE, 1x 10/100/1000 dedicated IPMI LAN port
11. USB Ports: 4x USB 3.0, 4x USB 2.0
12. Power Connectors: 2x 8-pin ATX 12V power connectors

Notes:
1. This motherboard supports Intel Xeon E5-2600 v2 processors.
2. The proprietary form factor may limit compatibility with some server chassis.
3. The dedicated IPMI LAN port allows for remote management of the server even when it is powered off.
