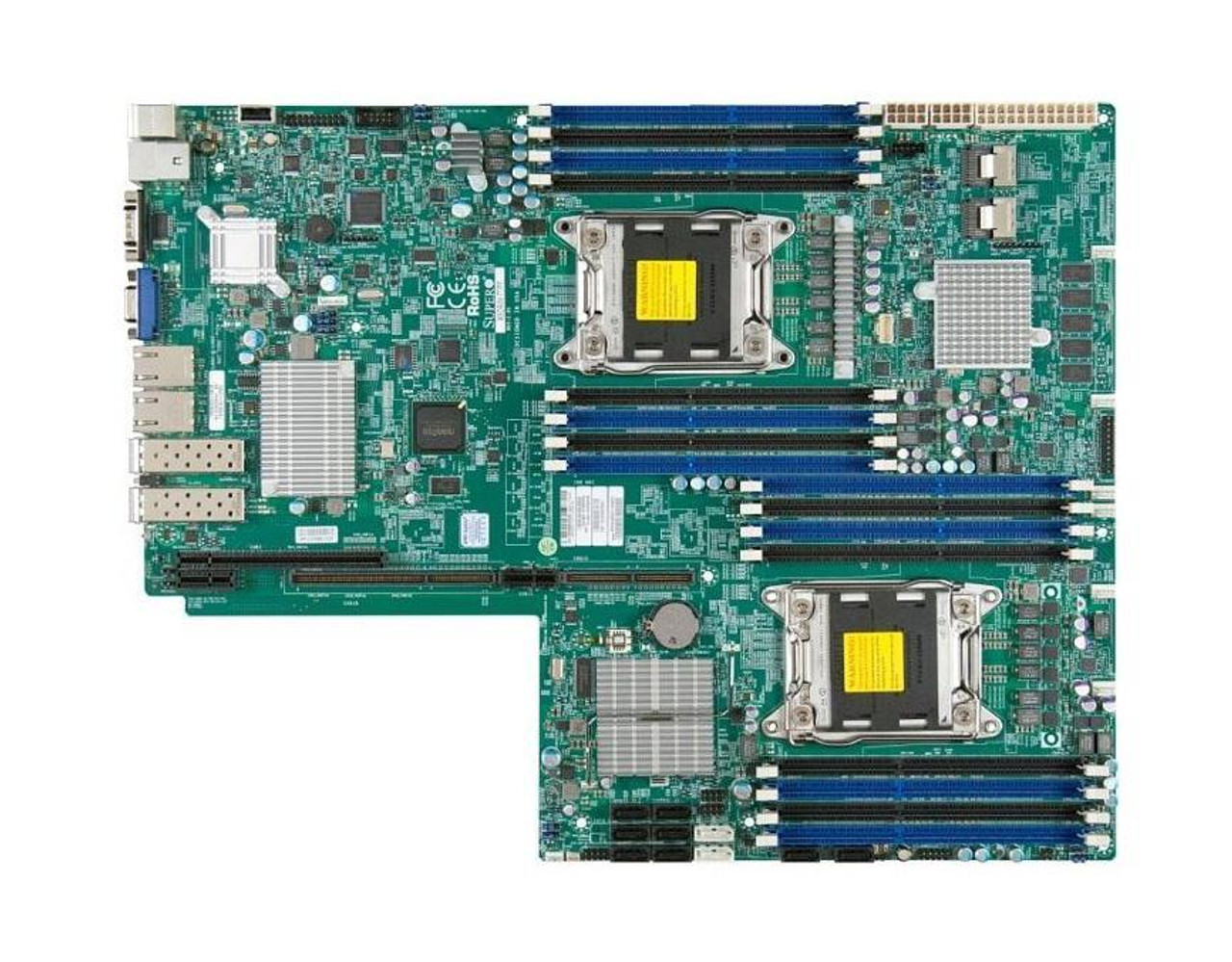

Supermicro X9DRW-7TPF-B | Dual LGA2011/ Intel C602/ DDR3/ SATA3/SAS/ V/2GbE/ Proprietary WIO Server Motherboard

1. Form Factor: Proprietary WIO
2. CPU Socket Type: Dual LGA2011
3. Chipset: Intel C602
4. Memory Type: DDR3 ECC Registered DIMM
5. Memory Slots: 16x 240-pin DIMM Slots
6. Max Memory Capacity: 512GB
7. Memory Speeds Supported: 1600/1333/1066 MHz
8. SATA 3 Ports: 8x SATA3 (6Gbps) Ports
9. SAS Ports: 8x SAS2 (6Gbps) Ports
10. Expansion Slots: 3x PCI-E 3.0 x16, 3x PCI-E 3.0 x8
11. Network Connectivity: 2x Gigabit Ethernet Ports
12. USB Ports: 8x USB 2.0 Ports

Notes:
1. This motherboard is designed for use in server systems and may not be compatible with all desktop components.
2. The proprietary WIO form factor may limit the availability of compatible cases and power supplies.
3. The dual LGA2011 CPU sockets allow for high-performance configurations with up to 24 cores and 48 threads.
