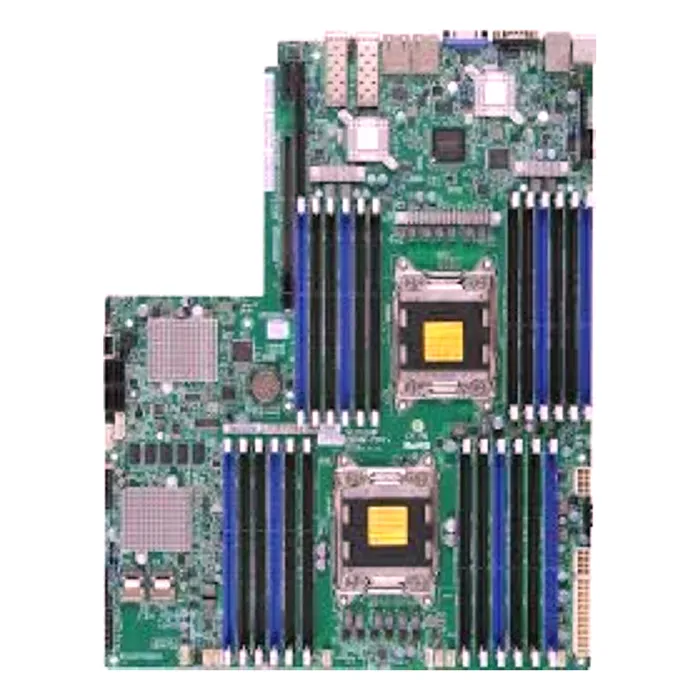

Supermicro X9DRW-7TPF+-B | Dual LGA2011/ Intel C602J/ DDR3/ SATA3/SAS2/ V/2GbE/ Proprietary WIO Server Motherboard

1. Form Factor: Proprietary WIO
2. CPU: Dual LGA2011
3. Chipset: Intel C602J
4. Memory: DDR3 ECC Registered DIMM, 16x DIMM slots
5. Max Memory Capacity: 1TB
6. Expansion Slots: 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8, 1x PCI-E 2.0 x4 (in x8)
7. Storage: 8x SATA3 (6Gbps) ports, 2x SATA2 (3Gbps) ports, 8x SAS2 (6Gbps) ports
8. RAID: SATA RAID 0/1/5/10, SAS RAID 0/1/10
9. LAN: 2x 1GbE, 1x 10/100/1000 dedicated IPMI
10. USB: 4x USB 2.0 ports (2 rear, 2 via header)
11. Graphics: Matrox G200eW Graphics
12. Power: Dual 8-pin ATX 12V power connectors

Notes:
1. This motherboard is designed for high-performance server applications.
2. The proprietary WIO form factor allows for more expansion options than traditional motherboards.
3. The dual CPU sockets and high memory capacity make this motherboard ideal for virtualization and other memory-intensive applications.
