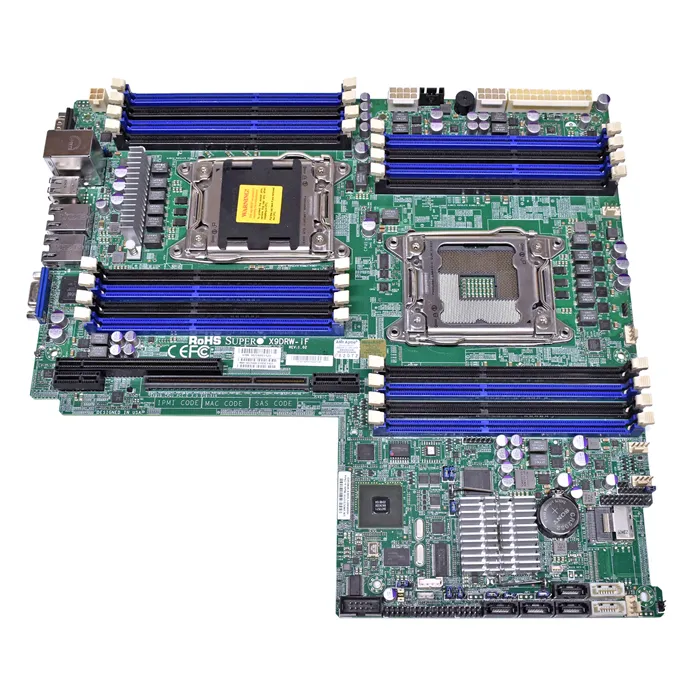

Supermicro X9DRW-IF-O | Dual LGA2011 /Intel C602/ DDR3/ SATA3/ V/2GbE/ Proprietary WIO Server Motherboard

1. Form Factor: Proprietary WIO Server Motherboard
2. CPU Socket Type: Dual LGA2011
3. Chipset: Intel C602
4. Memory Slots: 16x 240-pin DDR3 DIMM slots
5. Maximum Memory Supported: 512GB ECC/REG Memory
6. Memory Speed Supported: DDR3 1600/1333/1066 MHz
7. Expansion Slots: 3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8
8. SATA Ports: 10x SATA3 (6Gbps) ports
9. RAID Support: RAID 0, 1, 5, 10
10. LAN: 2x Gigabit Ethernet LAN ports
11. USB Ports: 6x USB 2.0 ports (2 rear, 4 via headers)
12. Power Connectors: 1x 24-pin ATX power connector, 2x 8-pin CPU power connectors

Notes:
1. This motherboard supports Intel Xeon E5-2600 v2 series processors.
2. The proprietary WIO design allows for more expansion options than traditional server motherboards.
3. Supermicro is known for its reliable and high-performance server hardware.
