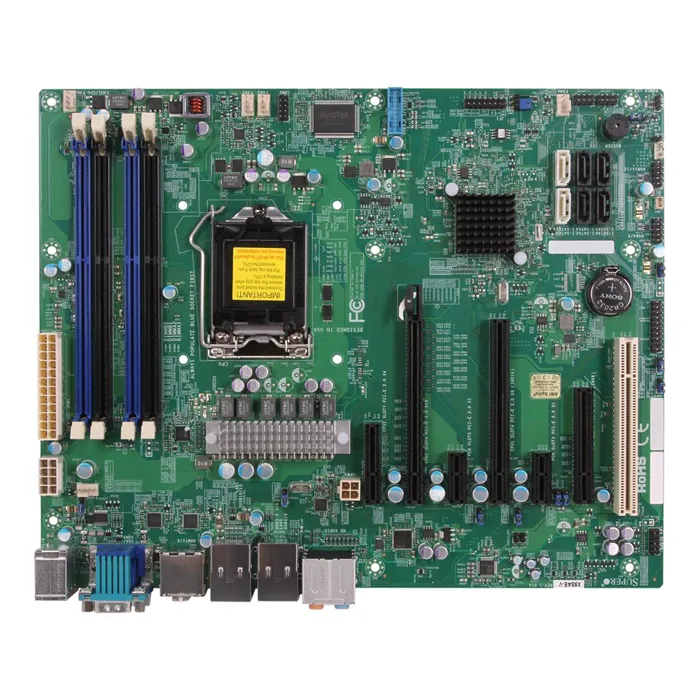

Supermicro X9SAE-B | LGA1155/ Intel C216 Express PCH/ DDR3/ SATA3/USB3.0/ A/2GbE/ ATX Server Motherboard

1. Form Factor: ATX
2. Processor: Supports Intel Xeon E3-1200 v2 series, 2nd and 3rd Generation Intel Core i3 and Intel Pentium processors
3. Chipset: Intel C216 Express PCH
4. Memory: 4x 240-pin DDR3 DIMM slots, Supports up to 32GB DDR3 ECC/non-ECC Un-Buffered memory
5. Expansion Slots: 1x PCI-E 3.0 x16 slot, 1x PCI-E 3.0 x8 slot, 1x PCI-E 2.0 x4 slot, 2x PCI 32-bit slots
6. Storage: 6x SATA3 (6Gbps) ports, 2x SATA2 (3Gbps) ports, Supports RAID 0, 1, 5, 10
7. USB: 4x USB 3.0 ports, 10x USB 2.0 ports (4 rear, 6 via headers)
8. LAN: 2x Gigabit Ethernet LAN ports (Intel i210AT)
9. Audio: Realtek ALC889 7.1 HD Audio
10. TPM: 1x TPM header
11. Power Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector
12. BIOS: 128Mb SPI Flash EEPROM with AMI BIOS

Notes:
1. This motherboard is designed for server use and may not be compatible with consumer-grade software and hardware.
2. ECC memory is recommended for server use to prevent data corruption.
3. The PCI-E 3.0 x16 slot supports up to 8GT/s and the PCI-E 3.0 x8 slot supports up to 5GT/s.
