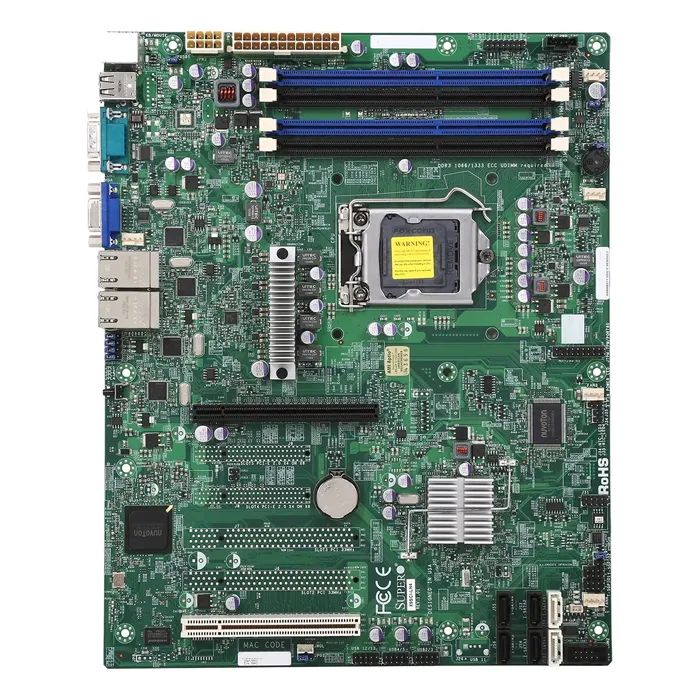

X9SCI-LN4F-O - Supermicro LGA1155/ Intel C204 PCH/ DDR3/ SATA3/ V/4GbE/ ATX Server Motherboard

1. Form Factor: ATX
2. Processor: Supports Intel Xeon E3-1200 & E3-1200 v2 series processors
3. Chipset: Intel C204 PCH
4. Memory: 4x 240-pin DDR3 DIMM slots, supports up to 32GB DDR3 ECC Unbuffered memory
5. Expansion Slots: 1x PCI-E 3.0 x16 slot, 1x PCI-E 2.0 x8 slot, 1x PCI-E 2.0 x4 slot, 2x PCI 32-bit slots
6. Storage: 4x SATA3 (6Gbps) ports, 2x SATA2 (3Gbps) ports, supports RAID 0, 1, 5, 10
7. LAN: 4x Gigabit Ethernet LAN ports
8. USB: 8x USB 2.0 ports (4 rear, 4 via header)
9. Audio: Realtek ALC889 7.1 HD Audio
10. Power Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector
11. BIOS: 64Mb SPI Flash EEPROM with AMI BIOS
12. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Notes:
1. This motherboard is designed for server use and may not be compatible with consumer-grade components.
2. ECC memory is recommended for optimal performance and reliability.
3. IPMI 2.0 allows for remote management and monitoring of the server, even if it is powered off.
