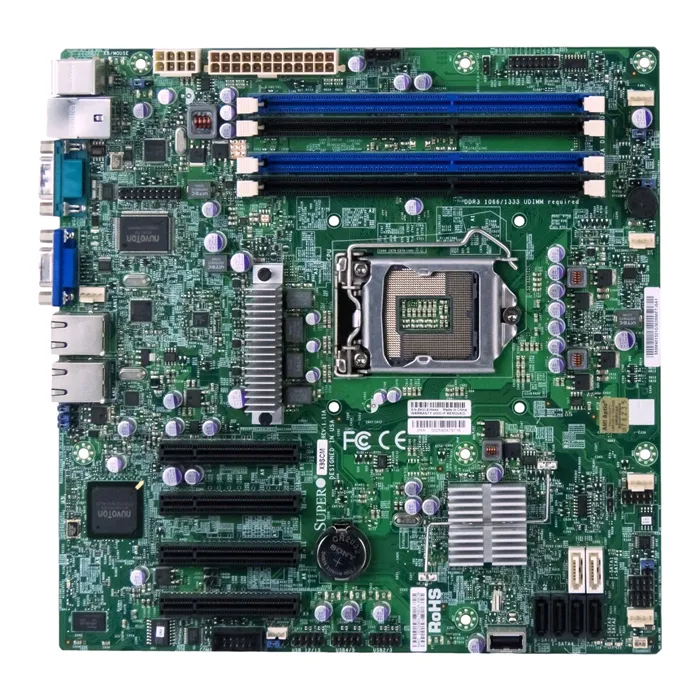

X9SCM-F-O - Supermicro LGA1155/ Intel C204 PCH/ DDR3/ SATA3/ V/2GbE/ MATX Server Motherboard

1. Form Factor: microATX
2. Processor: Intel Xeon E3-1200 and v2 series, 2nd gen Core i3 processors
3. Chipset: Intel C204 PCH
4. Memory: 4x 240-pin DDR3 DIMM slots, up to 32GB ECC/non-ECC UDIMM
5. Expansion Slots: 1x PCI-E 2.0 x16 slot, 1x PCI-E 2.0 x8 slot, 1x PCI-E 2.0 x4 (in x8) slot, 1x PCI-E 2.0 x1 slot
6. Storage: 6x SATA2 3Gb/s ports, 2x SATA3 6Gb/s ports, support RAID 0, 1, 5, 10
7. Networking: 2x Gigabit Ethernet ports (Intel 82574L)
8. USB Ports: 10x USB 2.0 ports (4 rear, 6 via headers)
9. Video: Aspeed AST2050 graphics with 16MB VRAM
10. Audio: Realtek ALC889 7.1 HD Audio
11. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
12. Power Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector

Notes:
1. This motherboard supports Intel Xeon E3-1200 and v2 series processors, which are designed for use in servers and workstations.
2. The IPMI 2.0 feature allows for remote management and monitoring of the system, even if the operating system is not running.
3. The use of ECC memory can help to improve system stability and prevent data corruption.
