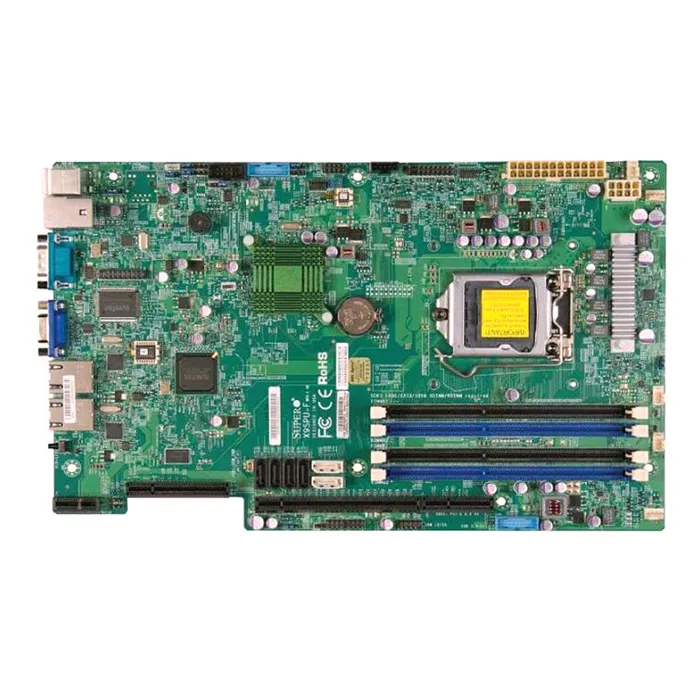

X9SPU-F-B - Supermicro LGA1155/ Intel C216 Express PCH/ DDR3/ SATA3/USB3.0/ V/2GbE/ Proprietary UIO Server Motherboard

1. Form Factor: ATX
2. Processor: Intel Xeon E3-1200 v2 & E3-1200 v1 family processors, 2nd Gen Intel Core i3 processors
3. Chipset: Intel C216 Express PCH
4. Memory: 4x 240-pin DDR3 DIMM slots, Supports up to 32GB DDR3 ECC/non-ECC Un-Buffered memory
5. Expansion Slots: 1x PCI-E 3.0 x16 slot, 1x PCI-E 2.0 x8 slot, 1x PCI-E 2.0 x4 (in x8) slot, 1x UIO slot
6. SATA: 2x SATA3 (6Gbps) ports, 4x SATA2 (3Gbps) ports
7. USB: 4x USB 3.0 ports (2 rear, 2 via header), 10x USB 2.0 ports (4 rear, 6 via header)
8. LAN: 2x RJ45 Gigabit Ethernet LAN ports
9. Graphics: Aspeed AST2300 BMC graphics
10. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
11. Power: ATX Power Connector
12. Audio: N/A

Notes:
1. This motherboard supports ECC memory which is important for server applications where data integrity is crucial.
2. With the UIO slot, this motherboard can support a wide range of add-on cards for additional functionality.
3. The IPMI 2.0 support allows for remote management and monitoring of the server, which can be very helpful for system administrators.
