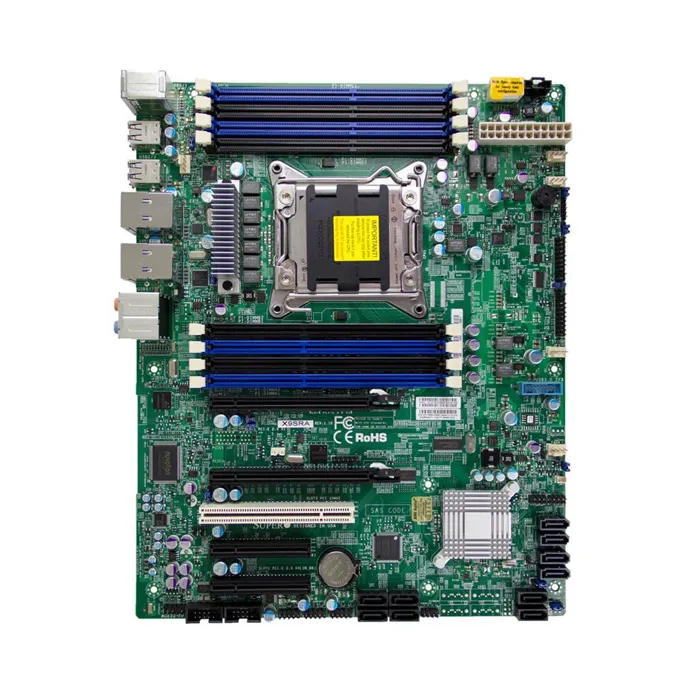

X9SRA-B - Supermicro LGA2011/ Intel C602/ DDR3/ SATA3/USB3.0/ A/2GbE/ ATX Server Motherboard

1. Processor: Intel Xeon E5-2600/1600 v2 family processors
2. Chipset: Intel C602 chipset
3. Memory: 8x 240-pin DDR3 DIMM slots, Supports up to 256GB DDR3 ECC Registered memory (RDIMM)/ Supports up to 64GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
4. Expansion Slots: 2x PCI-E 3.0 x16 slots, 2x PCI-E 3.0 x8 slots, 1x PCI-E 2.0 x4 (in x8) slot
5. Storage: 10x SATA3 (6Gbps) ports, 2x SATA2 (3Gbps) ports, Supports RAID 0, 1, 5, 10
6. USB: 2x USB 3.0 ports, 8x USB 2.0 ports (4 rear, 4 via headers)
7. Network: 2x Gigabit Ethernet LAN ports (Intel i350)
8. Audio: Realtek ALC889 7.1-Channel High Definition Audio CODEC
9. Form Factor: ATX Form Factor (12.0" x 9.6")
10. Power: Dual 8-pin 12v CPU power connectors
11. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
12. BIOS: 128Mb SPI Flash EEPROM with AMI BIOS

Notes:
1. This motherboard is designed for server use and may not be compatible with consumer-grade components.
2. The IPMI 2.0 feature allows for remote management of the server, making it easier to troubleshoot issues without physically being at the server.
3. The dual 8-pin CPU power connectors provide ample power for high-performance processors and ensure stable operation.
