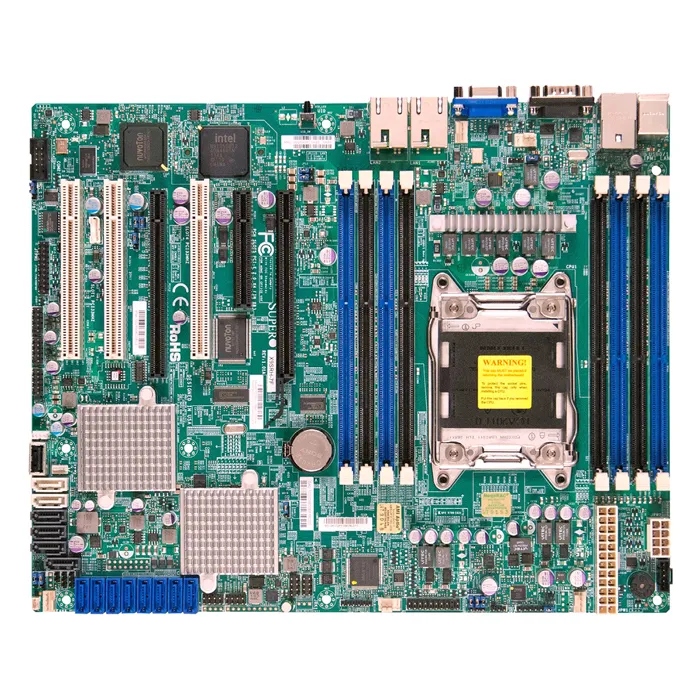

X9SRH-7F-O - Supermicro LGA2011/ Intel C602J/ DDR3/ SATA3/SAS2/ V/2GbE/ ATX Server Motherboard

1. Form Factor: ATX
2. Socket Type: LGA 2011
3. Chipset: Intel C602J
4. Memory Technology: DDR3
5. Maximum Memory Supported: 512 GB
6. Memory Slots: 8 x 240-pin DIMM
7. Expansion Slots: 2 x PCI-E 3.0 x16, 2 x PCI-E 3.0 x8, 1 x PCI-E 2.0 x4
8. SATA 3 Ports: 10
9. SAS 2 Ports: 8
10. LAN: 2 x 1GbE, 1 x 10/100/1000 dedicated IPMI LAN port
11. USB Ports: 8 x USB 2.0, 2 x USB 3.0
12. Power Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector

Notes:
1. Supports Intel Xeon E5-2600 and E5-2600 v2 processors
2. Features IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
3. Includes a Super I/O module with Nuvoton WPCM450 BMC chip for system management and monitoring.
